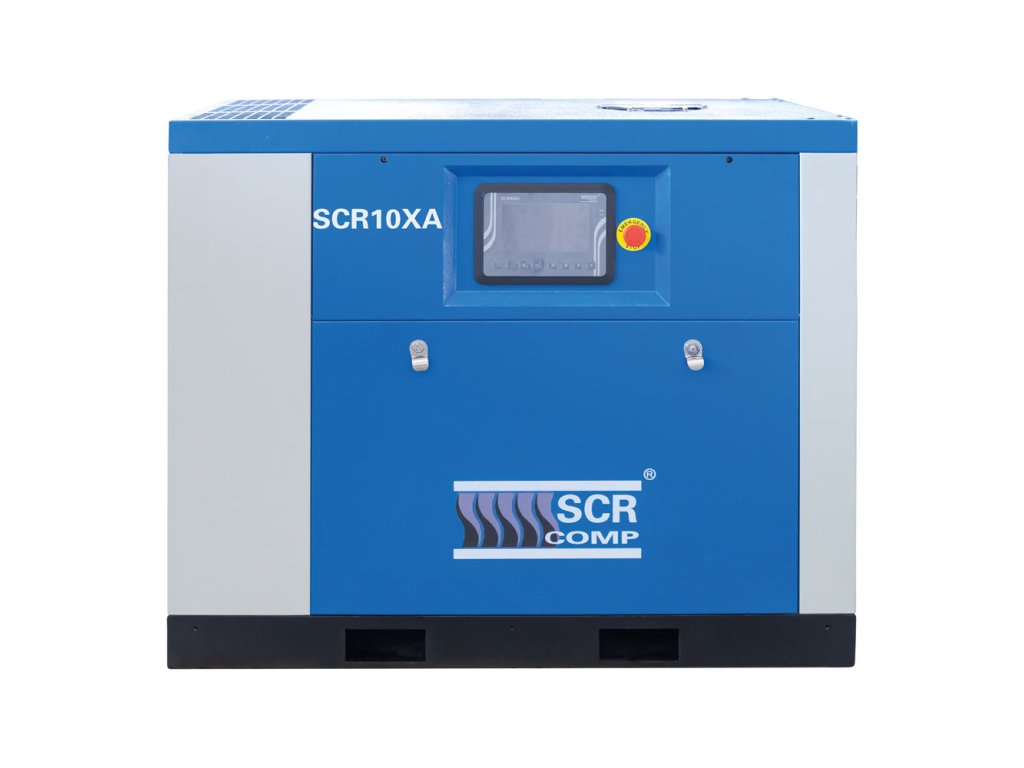

Scroll compressor SCR-15/8XA

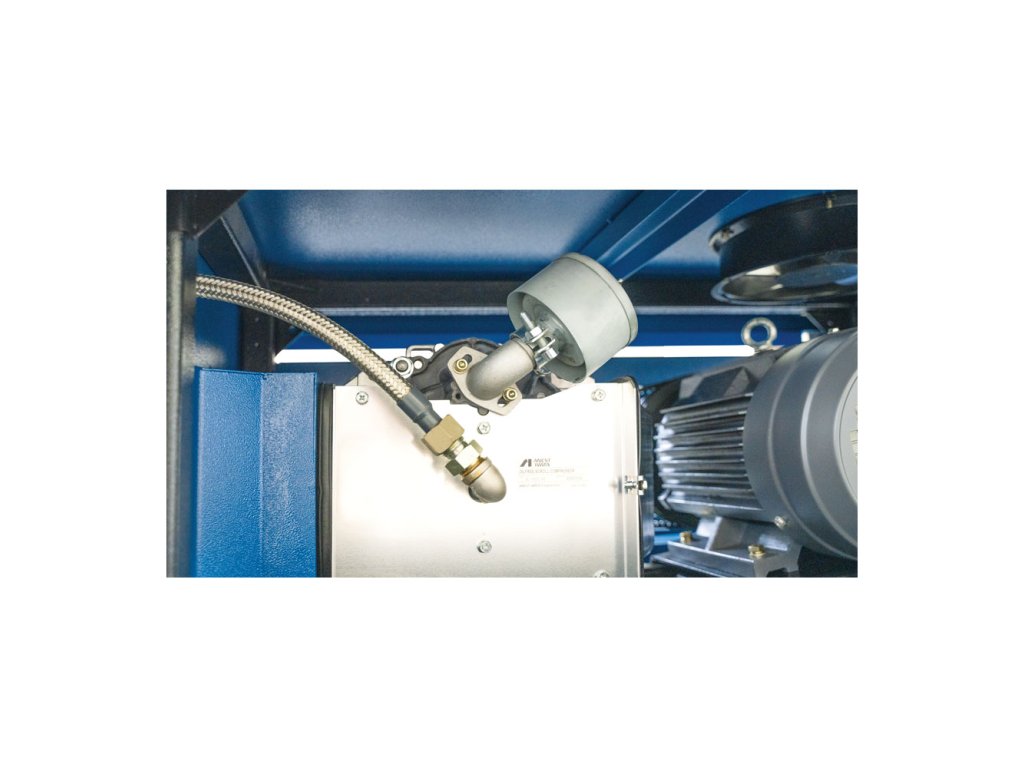

Top airends

Compressors of the SCR-XA series use scroll airends of the renowned Japanese manufacturer ANEST IWATA for air production, characterized by high quality. Thanks to the fully robotic production of the blocks, each piece produced is practically identical.

The use of several scroll airends enables their gradual economic switching on and off according to the current need for compressed air. The software in the control unit simultaneously ensures their regular replacement and optimizes their wear.

No risk of oil contamination

The space between the fixed and orbiting scrolle plate is sealed with a special tip seal. Thanks to this design, scroll compressors do not need lubricating oil and provide completely oil-free air meeting the requirements of class 0 for oil according to the ISO 8573-1 standard. The quality of oil-free air supplied by SCR-XA compressors is verified by certification by a notified body of TÜV Rheinland.

Extremely silent!

The use of the principle of the scroll airend provides not only oil-free air, but also significantly lower noise than with piston, screw or gear compressors. The very low noise of the SCR-XA series compressors allows their installation directly at the application site, and it is not necessary to build a compressor room with high costs and invest in a piping system.

SCR9000 electronic controller

The modern electronic controller with a 7" color touch screen in the Czech and 5 other languages with perfect software equipment that allows many user settings, display of parameters about the operation of the machine and reporting of possible faults.

more about SCR9000 >

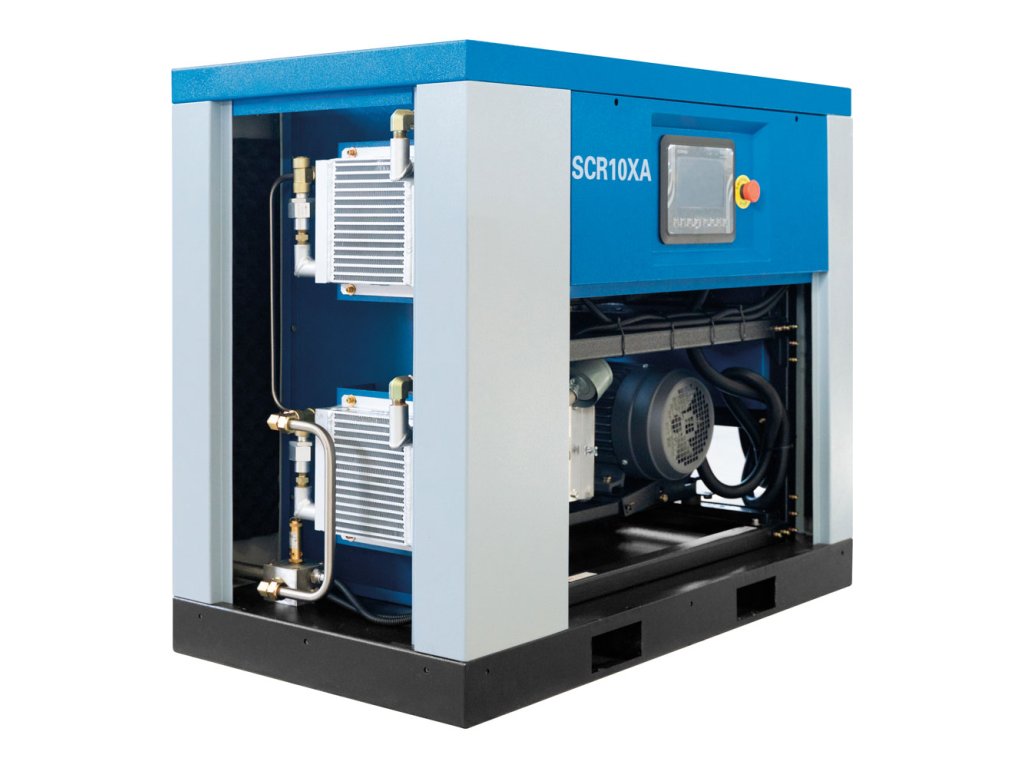

Efficient cooling system

On the output the compressor, the temperature of the compressed air is reduced by means of aftercoolers installed at the output from each airend, in order to maximally reduce the water content created during compression.

To further reduce the operating temperature, the SCR-XA compressors are equipped with a radial fan on the airend and independent fans that remove heat from the compressor housing.
